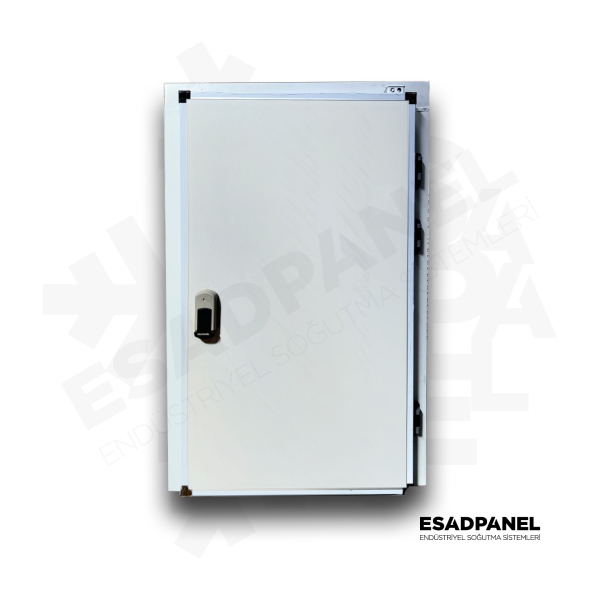

Hinged Door
Cold room hinged doors of cold storages are produced with special gaskets and polyurethane filled materials to keep heat permeability to minimum in cold rooms. Isolated doors are making you sure that you cover the cooled air inside. Esad Panel isolated doors are correct solution with maximum isolation for the cold room systems.
- Thermal Isolation
- Freeze-thaw resistance
- Water resistant
- Sound isolation
- Different thicknesses 68, 92 mm
Product Description
Internal opening handles provides occupational safety by preventing the risk of employees being trapped.
Specially engineered soft isolation gaskets, air tightness is maximized and the doors are vacuumed.
Door wings produced from matte anodized aluminum profiles offer long-lasting usage performance.
Fire Rate: Euroclass B-s3, d0 according to EN 13501-1, Polyurethane (PUR) foam. Polyisocyanurate (PIR) B-s2, d0 class is optional.
Indispensable in isolation with optimum high density provides maximum isolation.
Provides maximum durability with optimum thickness of the surface materials.
Comes with mounting apparts and makes it easier installation with camlocks for cold room.
Special hygienic materials for food environments, thus they are safe products for health.
CASES
COLOURS
FROST-FREE
THRESHOLD
Additional Information
| Origin | Sivas, Türkiye |
|---|---|
| Sizes | 50×150 ~ 150×300 |
| Case | PVC |
| Case Thickness | 8,0 cm |
| Case Additions | For, 10, 12, 15, 18, 20 cm |
| Frame | Aluminum (6063), Cr-Ni (SS304) |
| Frame Thicknesses | Cold: 6,8 cm, Frozen: 9,2 cm |
| Surface | P.P.G.I. Poly, PVC, Cr-Ni |
| Color Codes | POLY: RAL9002 – PVC: ARB1 – CRNI: SS304 |
| Isolation Material | PUR – Polyurethane |
| Density | 42 (±2) kg/m3 |
| Fireproof | PUR: B+s3+d0 , B+s2+d0 |
| Resistance | Cold: None Frozen: Heater Cable in Gaskets |
