Cold Room Panels – Floor

Cold room floor panels provides maximum isolation for the ground leakages of storage cooling. Tailored for diverse industries, these panels deliver exceptional insulation, durability and strength, creating a resilient foundation for cold storage environments. Whether in pharmaceuticals, food storage, or hotels, Esad Panel cold storage floor panels offer a reliable, durable and energy-efficient solution, optimizing the preservation conditions of your products.

  • Ground Isolation
  • Stainless
  • Freeze-thaw resistance
  • Non-corrosive
  • Non-Slip

Perfect combination is achieved by interlocking systems. The fact error-free is the result of a production with accurate workmanship.

ESADPANEL® provides different thicknesses for different conditions of the goods and different temperatures of the needs of world.

Camlock® systems that maximize sealing thanks to their interlocking lock systems in male and female form.

Fire Rate: Euroclass B-s3, d0 according to EN 13501-1, Polyurethane (PUR) foam.  Polyisocyanurate (PIR) B-s2, d0 class is optional.

Cold Room Panel Best Quality High Density 42 - EsadPanel

Indispensable in isolation with optimum high density  provides maximum isolation.

Cold Room Panel Durable - EsadPanel

Provides maximum durability with optimum thickness of the surface materials.

Cold Room Panel Easy Installation - EsadPanel

Comes with mounting apparts and makes it easier installation with camlocks for cold room.

Cold Room Panel Hygienic - Food Safety - EsadPanel

Special hygienic materials for food environments, thus they are safe products for health.

FLOOR TYPES

PATTERN

INSTALLATION

CAPACITY

Panel width is produced as 1110mm as standard. There is an additional joint margin of 20mm. Panel widths can be specially produced from 310mm to 1110mm upon request.

Origin

Türkiye, Sivas.

Width

1110 mm – 1,11 cm

Max Length

13000 mm – 13,0 m

Thicknesses

50, 60, 80, 100, 120, 150, 200 mm

Sheets

P.P.G.I. (POLY), Cr-Ni (SS304), PVC, Plywood.

Sheet Thicknesses

Wall/Ceiling: 0,35, 0,40, 0,50, 0,60 mm – Floor: 8,0, 9,0 10,0 cm

Isolation Material

PUR – Polyurethane

Density

38 (±2) kg/m3, 40 (±2) kg/m3, 42 (±2) kg/m3

Color Codes

POLY: RAL9002 – PVC: ARB1 – CRNI: SS304 – PLYWOOD: BROWN/BLACK

Pattern

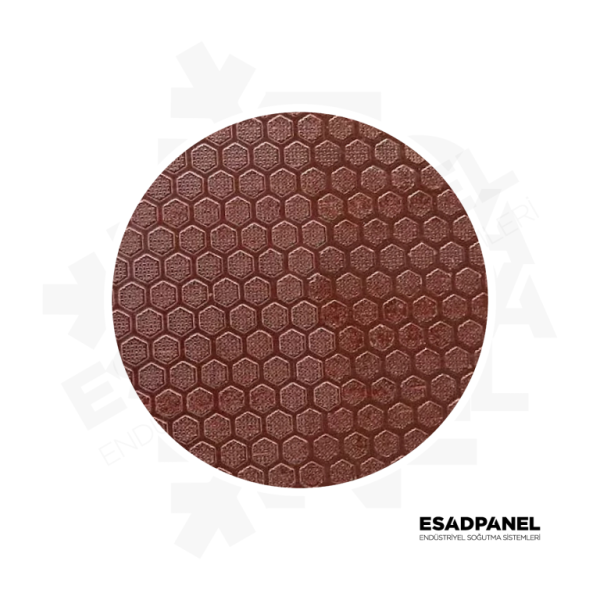

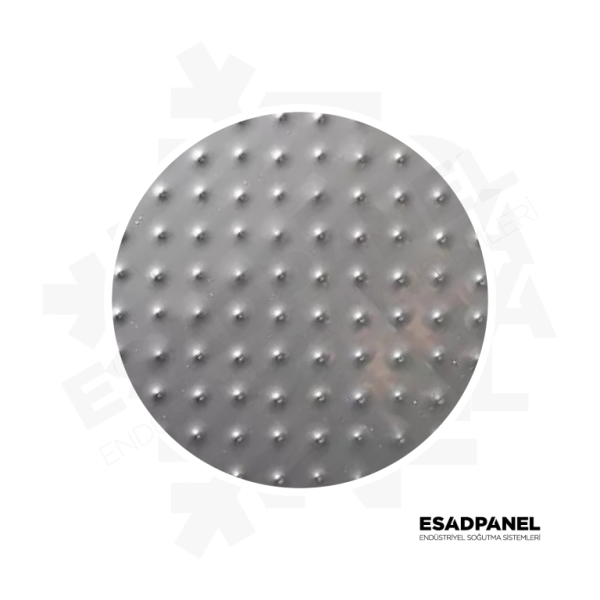

V Ribbed, Flat, Hexa, Floor Type (Non-Slip)

Fireproof

PUR: B+s3+d0 , B+s2+d0

Camlock

Camlock – Without Camlock
